BCCD


Ein robustes tragbares dreifaches LCD-Anzeigesystem aus strapazierbaren Metall für ein robustes Gerät, das überall eingesetzt werden kann.

Download Datasheet

BCCD Main
Video Preview

3x robuste HD-Displays

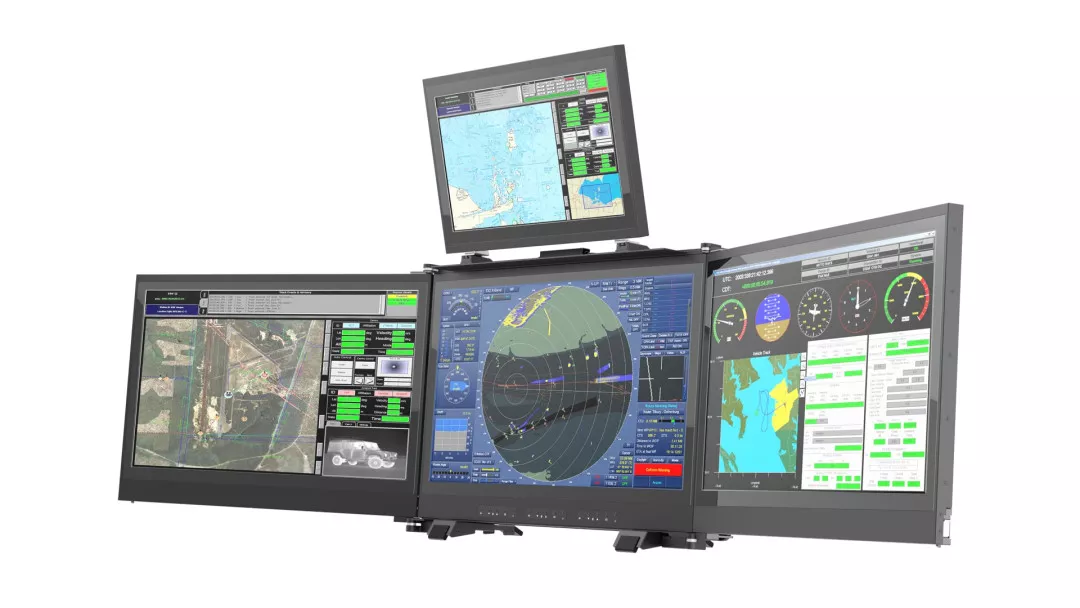

Das BCCD ist ein robustes tragbares dreifaches LCD-Anzeigesystem aus strapazierbarem Metall, das eine robuste Einheit für unterwegs bietet, die sich ideal für eine Vielzahl von Anwendungen eignet, z. B. für computergestütztes Design, geografische Informationssysteme und professionelle Anwendungen für digitale Medien. Der BCCD verfügt über einen kompakten, leichten Formfaktor und bietet hervorragende Anzeigen für Simulations- und Trainingsanwendungen.

Jedes BCCD ist mit drei LCD-Displays, mit einer Auflösung von 1920 x 1080 HD und mehreren unabhängigen DVI / VGA / DP-Eingängen, ausgestattet. Die unabhängigen Dreifacheingänge sind vollständig kompatibel mit den meisten Hochleistungsgrafikkarten.

Das BCCD-LCD-Display kann aufgelappt werden und zum Transport, zur Lagerung vollständig zugeklappt werden. Mit seinen umfangreichen Funktionen und seiner besonders robusten Konstruktion gegen Stöße ist es die langlebigste und effizienteste Triple-Display-Lösung für Ihre Anforderungen.

Technical Specifications

Product BCCD
Display 3x 17.3" FHD 1920 X 1080 resolution (5760 x 1080 display area)
Brightness 300 nits
Contrast Ratio 400:1
Viewing Angle 170° (Horizontal) x 160° (Vertical)
Color 262K Colors
Backlight MTBF 50,000 Hours under 25±5°C
Ports USB 3.0
Dimensions Height: 15.67" (398mm)
Width: 18.46" (469mm)
Depth: 5.6" (142mm)
Weight ~24 lbs (11kg)
Battery-powered Yes
Power Supply 90W, 100-240VAC, 50/60Hz
Optional Features Optional Multi-touch, KVM, and VESA mount
Customization Military connectors, custom I/O, and more.

Configuration Options

The technical specifications are an example of the system's capabilities. They can be customized specifically for your needs. If you have any questions, feel free to contact one of our sales representatives.

Contact Sales

Compare Similar Systems

At a glance, it may be difficult to see the differences among some of our products. As a result, simply click the button below to see the differences among other similar systems.

Product BCCD FlexPAC III MegaPAC L3
Display Option 1: 3x 23.8" FHD 1920 x 1080 (5760 x 1080 display area)
Option 2: 3x 23.8" 4K 3840 x 2160 resolution (11520 x 2160 display area)
Option 3: 3x 17.3" FHD 1920 X 1080 resolution (5760 x 1080 display area)
Triple 17.3" Full HD 1920x1080 Triple 23.8" UHD 3840x2160 - 350 nits (Optional: 800 nits - 650 nits with toughscreen),
or Triple 23.8" Full HD 1920x1080 - 250 nits (Optional: 1000 nits - 800 nits with touchscreen),
or Triple 23.8" WUXGA 1920x1200 - 250 nits (Optional: 1000 nits)
Brightness 300 nits N/A N/A
Contrast Ratio 400:1 N/A N/A
Viewing Angle 170° (Horizontal) x 160° (Vertical) N/A N/A
Color 262K Colors N/A N/A
Backlight MTBF 50,000 Hours under 25±5°C N/A N/A
Ports DVI, VGA, DP, or USB N/A N/A
Dimensions Height: 15.67" (398mm)
Width: 18.46" (469mm)
Depth: 5.6" (142mm)
Folded:
Height: 14.5" (368mm)
Width: 17.125" (435mm)
Depth: 11.75" (298.5mm)

Deployed:
Height: 14.5" (368mm)
Width: 43.0" (1092mm)
Depth: 11.75" (298.5mm)
Height: 16.39" (416mm),
Width: 22.96" (583mm),
Depth: 11.98" (304mm)
Weight ~24 lbs (11kg) ~65 lbs (29.5kg) 52.82 lbs (24kg)
