MegaPAC Family

Hi-Res, 24" Workstations.

MegaPAC L1 With Backlit Keyboard

24" UHD Display integrated into a high performance rugged portable. Designed for video editing, media and broadcast applications with 7x full-length expansion slots.

MegaPAC L1

Learn more

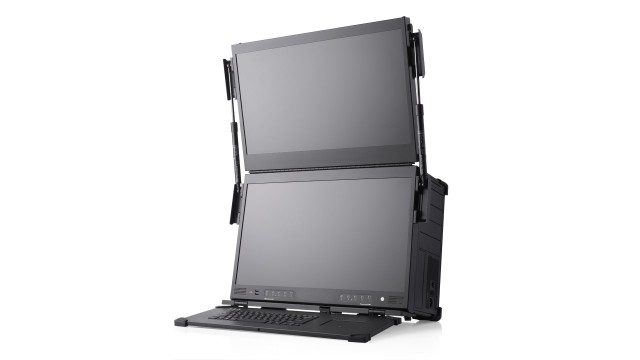

MegaPAC L2 Main

Dual 24" HD Displays in an up-down design integrated into a high performance rugged portable. Designed for video editing, media and broadcast applications with 7x full-length expansion slots.

MegaPAC L2

Learn more

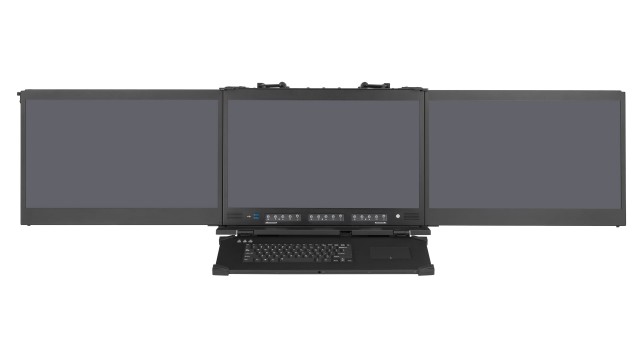

MegaPAC L3 with Backlit Keyboard

Triple 24" HD displays in a high performance, rugged portable setup. Designed as a flexible-use unit with 7x full-length expansion slots configurable for the most demanding applications. * The MegaPAC L3 can also add an additional 3 displays totaling up to 6 displays by attaching our ML3 as shown in the pictures.

MegaPAC L3

Learn more

MegaPAC Family Technical Specs

MegaPAC L1 Thumbnail

MegaPAC L1

Learn more

MegaPAC L2 Thumbnail

MegaPAC L2

Learn more

MegaPAC L3 Thumbnail

MegaPAC L3

Learn more

23.8" UHD 3840x2160 - 350 nits (Optional: 800 nits - 650 nits with touchscreen),
23.8" Full HD 1920x1080 - 250 nits (Optional: 1000 nits - 800 nits with touchscreen),
24" WUXGA 1920x1200 - 250 nits (Optional: 1000 nits)

Dual 23.8" UHD 3840x2160 - 350 nits (Optional: 800 nits - 650 nits with touchscreen),
or Dual 23.8" Full HD 1920x1080 - 250 nits (Optional: 1000 nits - 800 nits with touchscreen),
or Dual 24" WUXGA 1920x1200 - 250 nits (Optional: 1000 nits)

Triple 23.8" UHD 3840x2160 - 350 nits (Optional: 800 nits - 650 nits with toughscreen),
or Triple 23.8" Full HD 1920x1080 - 250 nits (Optional: 1000 nits - 800 nits with touchscreen),
or Triple 23.8" WUXGA 1920x1200 - 250 nits (Optional: 1000 nits)

Latest Single/Dual Intel® Xeon, Intel® Core, AMD Ryzen™, or AMD EPYC™

Latest Single/Dual Intel® Xeon, Intel® Core, AMD Ryzen™, or AMD EPYC™

Latest Single/Dual Intel® Xeon, Intel® Core, AMD Ryzen™, or AMD EPYC™

Up to 1TB DDR4 RAM

Up to 1TB DDR4 RAM

Up to 1TB DDR4 RAM

Integrated HD graphic controller
or application-specific graphic controller

Integrated HD graphic controller
or application specific graphic controller

Integrated HD graphic controller
or application-specific graphic controller

Up to 7

Up to 7

Up to 7

Up to 150TB (Removable Option Available)

Up to 150TB (Removable Option Available)

Up to 150TB (Removable Option Available)

850W 100/240VAC, 50/60Hz auto-switching 80 PLUS GOLD rated
Optional: 1000W or 1200W 100/240VAC, 50/60Hz auto-switching 80 PLUS Platinum rated (with 10 year warranty)
Optional: 28VDC power supply

850W 100/240VAC, 50/60Hz auto-switching 80 PLUS GOLD rated
Optional: 1000W or 1200W 100/240VAC, 50/60Hz auto-switching 80 PLUS Platinum rated (with 10 year warranty)
Optional: 28VDC power supply

850W 100/240VAC, 50/60Hz auto-switching 80 PLUS GOLD rated
Optional: 1000W or 1200W 100/240VAC, 50/60Hz auto-switching 80 PLUS Platinum rated (with 10 year warranty)
Optional: 28VDC power supply

Height: 15.12" (384mm)
Width: 23.11" (587mm)
Depth: 9.02" (229mm)

Height: 16.31" (414mm)
Width: 24.58" (624mm)
Depth: 10.56" (268mm)

Height: 16.39" (416mm),
Width: 22.96" (583mm),
Depth: 11.98" (304mm)

~40 lbs (18kg)

~45 lbs (20kg)

52.82 lbs (24kg)
